Product Name

Product Specification

Remarks

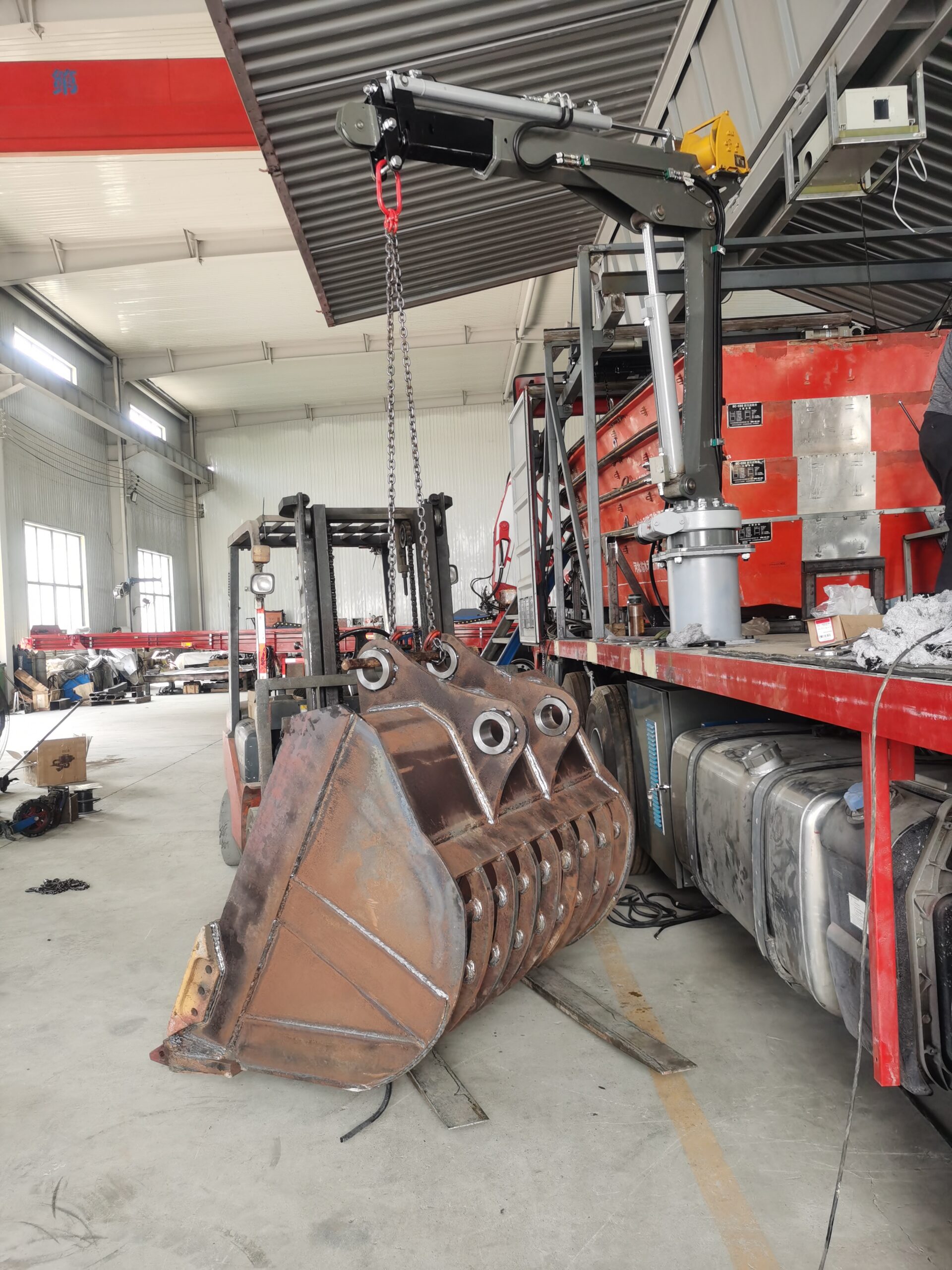

Light Crane

ML180.2

Vehicle chassis extractor mounting, base stabilizer, electromagnetic oil control, (hydraulic slewing 330 degrees)

Hydraulic Capstan

500kg

Hydraulic drive rubber disk; wireless remote control, hydraulic oil tank

类别内容 DATI TECNICI – TECHNICAL DATA

规格UM

技术参数VERSIONE – VERSION

起重能力CRANE RATING

kNm

 17

起重臂液压伸展

N° SFILATE STANDARD (IDRAULICHE)

N°

Standard extensions (hydraulic) 2H sections, 3 sections

标准外展

SBRACCIO STANDARD OUTREACH

m

3.00

旋转角度

ANGOLO DI ROTAZIONE

SLEWING ANGLE

°

Slewing angle 330°

最大倾角INCLINAZIONE MASSIMA

 MAXIMUM ANGLE SLOPE

°

Maximum angular slope of 5°

回转扭矩COPPIA DI ROTAZIONE

SLEWING TORQUE

knm

2.0

最大提升高度ALTEZZA SOLLEVAMENTO MAX. DALLA BASE MAX. LIFTING HEIGHT FROM CRANE BASE

m

4.00

建议机油流量PORTATA CONSIGLIATA

SUGGESTED OIL FLOW

l/min

6-8

最大工作压力PRESSIONE MAX. DI ESERCIZIO

MAX. WORKING PRESSURE

mpa

21

起重机重量PESO GRU BASE VERS. “H”

BASIC CRANE WEIGHT VERS. “E”

kg

180 -200

底座稳定器PESO BASAMENTO CON STABILIZZATORI ESTENDIBILI BASE WEIGHT WITH  EXTENDABLE STABILIZERS

kg

69-83

底盘供电GRU ELETTROIDR

 DC/V

24

最大绞盘MAX. WINCH SINGLE LINE CAPACITY

Kg

kg 500

钢丝绳直径DIAMETRO FUNE ROPE DIAMETER

mm

6

绳索长度LUNGHEZZA FUNE  ROPE LENGTH

m

15

绞车套件重量

PESO KIT ARGANO WINCH KIT WEIGHT

kg

30

Our company reserves the right to upgrade and change the technical parameters of the products without prior notice
